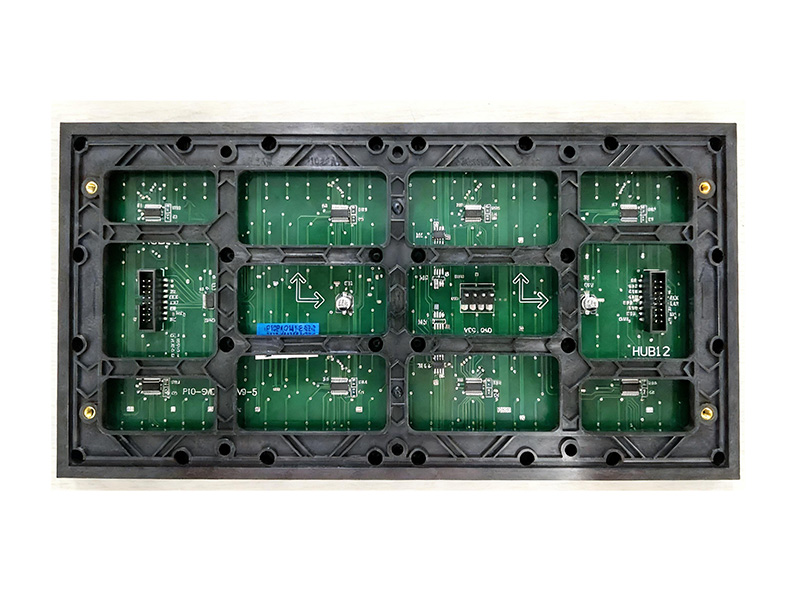

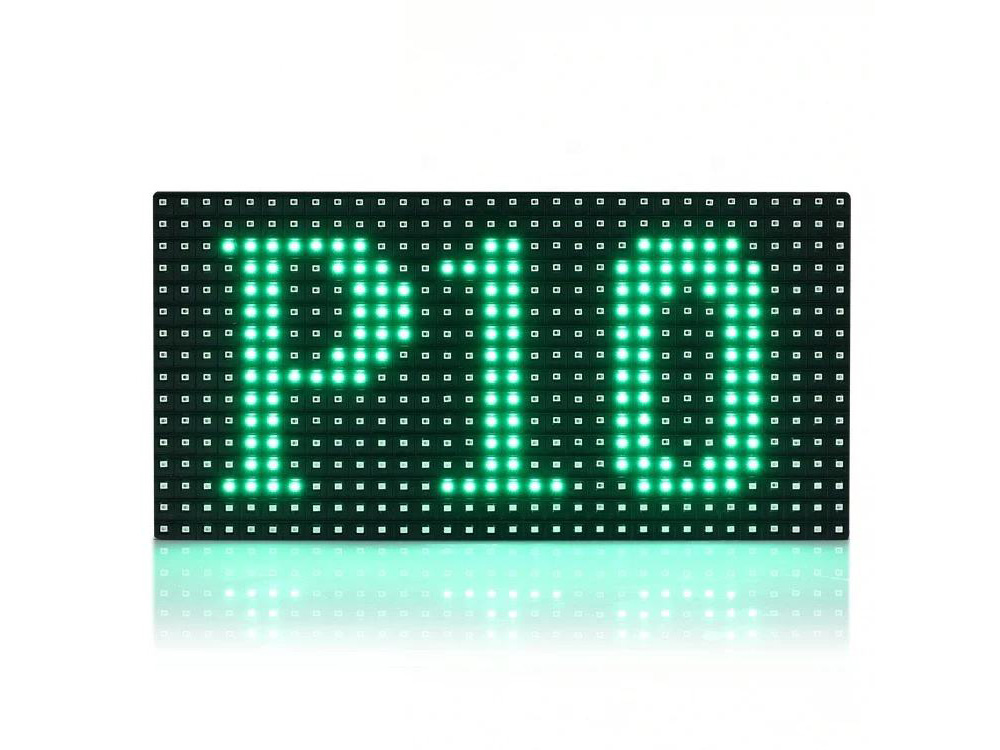

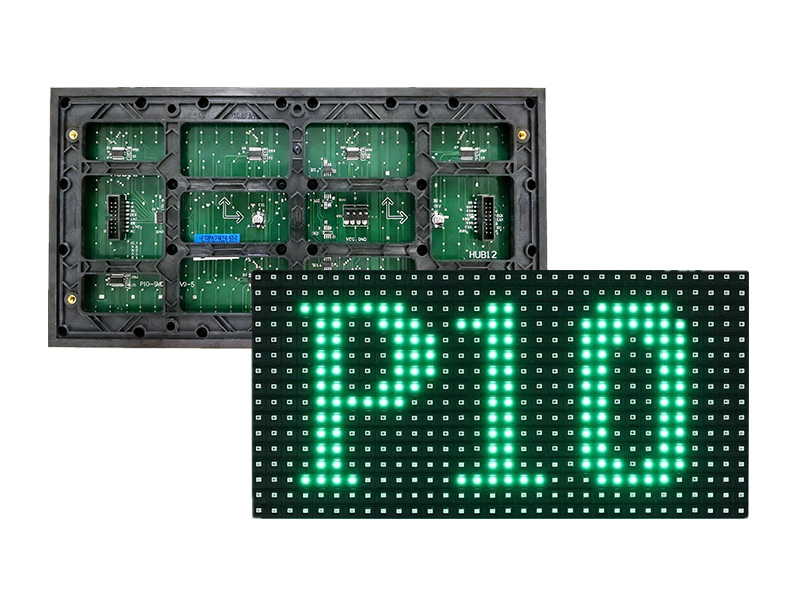

A dedicated monochrome display module delivering high-brightness Green light for clear, high-contrast information display in functional and public settings. Its 10mm pixel pitch and uniform white output ensure excellent long-distance readability and visual impact.
ماركة :
Hoozoeنموذج :
P10 SMD Monochrome LED Green Moduleالطلب (الحد الأدنى لكمية الطلب) :
80 pcsقسط :
TTأصل المنتج :
Zhangzhouلون :
Whiteميناء الشحن :
Xiamenمهلة :
7-15 daysوزن :
230gFeatures
Optimized for Clarity: A 10mm pixel pitch provides a crisp, sharp display of text, symbols, and graphics at viewing distances typically beyond 15 meters, making critical information highly legible.
High-Brightness Green Output: Utilizes dedicated white LEDs to produce bright, consistent, and neutral illumination, offering superior contrast for message display and background lighting applications.
Stable & Consistent Performance: Built with reliable SMD packaging and designed for continuous operation, ensuring long-term stability and uniform brightness across the entire display surface.
Simple Integration & Maintenance: Features a straightforward modular design for easy assembly into large-scale panels and supports convenient module replacement, reducing system downtime and maintenance complexity.
Ideal for: Public information boards, transportation schedule displays, industrial status indicators, high-contrast warning or guidance signs, and any application requiring a clear, bright, and monochromatic white light display.
Parameter
| Parameter Name | Product Parameter | Product Parameter | |
| Model Name | Single Green | Single Green high brightness | |
| Screen | Maximum power consumption | 350 W/㎡ | 350 W/㎡ |
|
Usage environment |
Outdoor | ||
|
Viewing distance |
≥10m | ||
|
Blind spot rate |
Less than 0.03% | ||
| Brightness | ≥ 8000-10000 cd/㎡ | ≥3000 cd/㎡ | |
| Average power consumption of the screen | 150-200 W/㎡ | 260- 300 W/㎡ | |
| Horizontal viewing angle of screen | 140 degree | 120±20 degree | |
|
Vertical viewing angle of the screen |
140 degree | 120±20 degree | |
| Module |
Pixel Pitch |
10mm | |
|
Pixel Density |
10000 Dots/㎡ | ||
| Resolution | 32x16=512 Dots | ||
| Structural characteristics | Integrated light drive system | ||
| Pixel composition | 1R | ||
| Drive mode | 1/4scan constant current drive | ||
| Input voltage | 4.5-5.5 V | ||
|
Kit materials |
Polycarbonate PC material | ||
| Weight | 230 g | ||
| Power of unit module | 15 W | ||
| Size (Long, Wide, and Thick) | 320*160*15（mm) | ||
| Maximum current | 3.4 A | 3 A | |
|
Number of modules supported by 200w power supply |
<12 pieces | ||
|
System |
Frame Frequency |
>60 frames per second | |
|
Refresh frequency |
≧ 80HZ | ||
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
||
|
Brightness adjustment |
256 level manual/automatic |
||
| Driver chip mode | |||
Core Advantages of Hoozoe P10 SMD Monochrome LED Module
SMD Technology for Reliable Performance
Utilizing Surface-Mount Device (SMD) LEDs, this module features a compact design with strong solder joint integrity and consistent luminous output. The encapsulated structure enhances protection against environmental factors while ensuring stable operation in both indoor and covered outdoor applications.
Clear Monochrome Display
Available in single-color options such as red, green, blue, or white, the module delivers sharp, high-contrast visibility ideal for displaying text, numbers, symbols, and basic graphics—ensuring clear and effective messaging.
High Brightness for Optimal Visibility
Equipped with high-intensity SMD LEDs, the module provides strong and uniform brightness, maintaining readability even in daylight or well-lit environments.
Durable & Weather-Resistant Design
Built with robust protection against dust and moisture, suitable for indoor and sheltered outdoor installations. Designed to perform reliably across a range of temperatures and environmental conditions.
Long Lifespan & Low Maintenance
Engineered for extended operation with a typical lifespan of 50,000–80,000 hours, minimizing maintenance needs and offering dependable long-term performance in varied application scenarios.

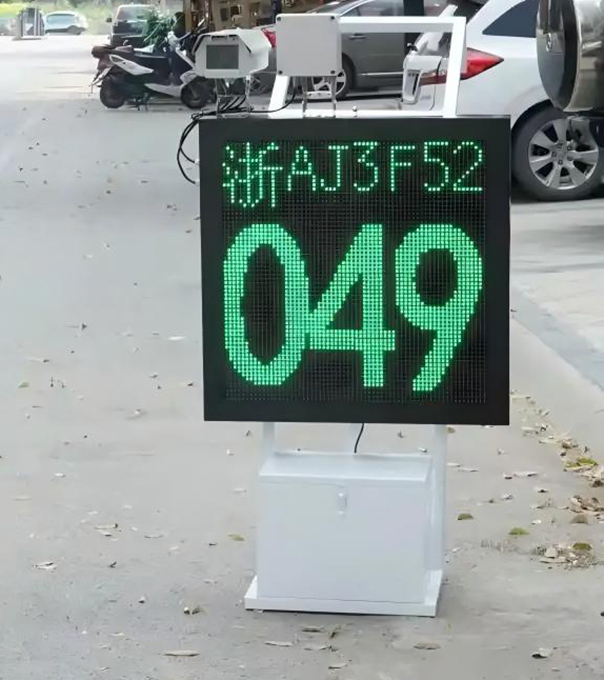

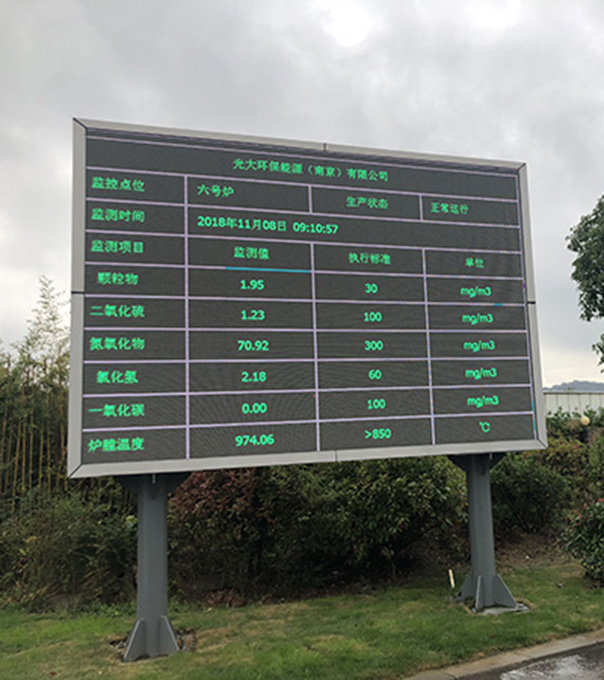

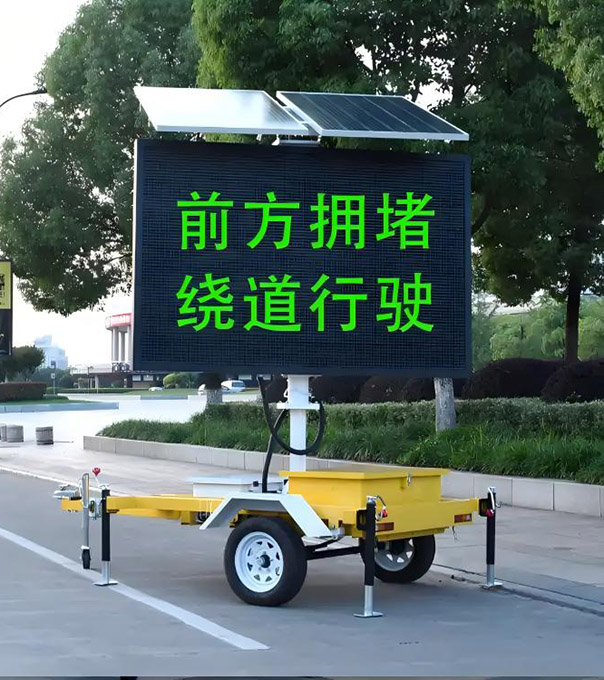

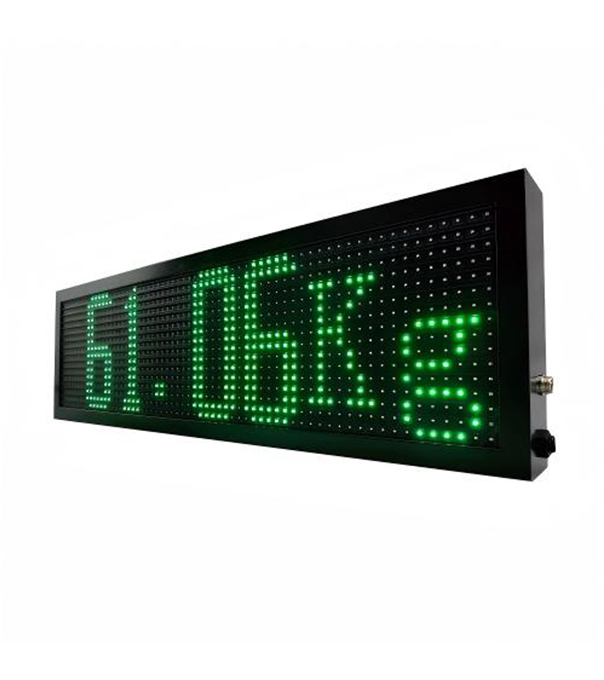

Applications Scenario
