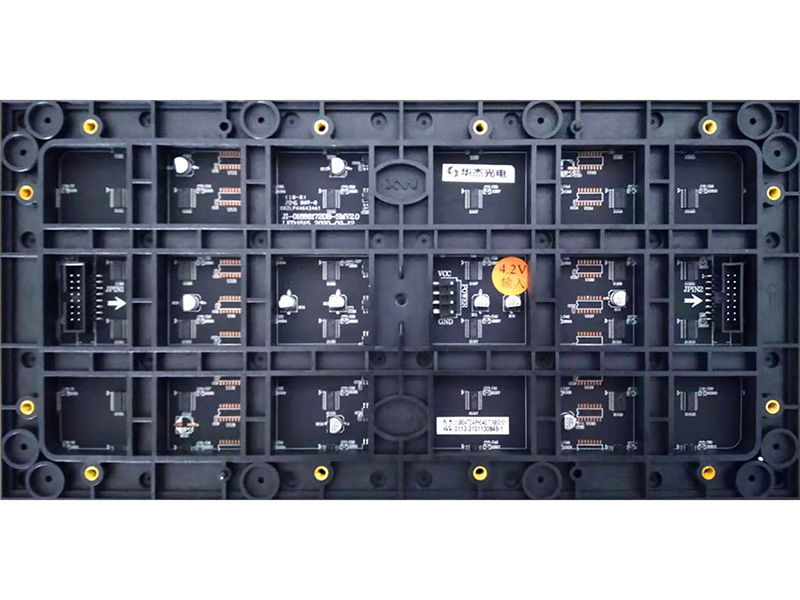

The SMD Indoor P1.8604 LED Full Color Module features a 1.8604 mm pixel pitch, delivering high-resolution, sharp visuals for close to medium viewing distances. Designed for seamless integration, it is ideal for professional environments such as control rooms, corporate lobbies, broadcast studios, and premium retail displays. Offering reliable performance and excellent color uniformity, it ensures a clear and immersive viewing experience in controlled indoor settings.
ماركة :
Hoozoeنموذج :
SMD Indoor P1.8604 LED Full Color Moduleالطلب (الحد الأدنى لكمية الطلب) :
50قسط :
TTأصل المنتج :
Zhangzhouلون :
Full colorميناء الشحن :
Xiamen/Shenzhenمهلة :
10 daysوزن :
450gFeatures
Pixel Pitch:
Featuring a 1.86 mm distance between pixel centers, this pitch offers an optimal balance of high resolution and cost-effectiveness for professional indoor applications.
High Resolution & Detail:
The dense pixel layout delivers sharp, detailed visuals, making it ideal for high-definition video, graphics, and data content.
Optimal Viewing Distance:
Designed for close- to mid-range viewing, it ensures a smooth and clear image without visible pixelation, even at short distances.
Reliable Technology:
Built with surface-mount device (SMD) packaging, the module provides consistent color performance, excellent uniformity, and long-term durability.
Typical Applications:
Well-suited for professional and high-end environments such as corporate lobbies, control rooms, broadcast studios, luxury retail spaces, and digital signage installations.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 500 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥2.0m | |
|
Blind spot rate |
Less than 0.02% | |
| Brightness | > 600 cd/㎡ | |
| Average power consumption of the screen | 180-250 W/㎡ | |
| Horizontal viewing angle of screen | 140±10 degree | |
|
Vertical viewing angle of the screen |
140±10 degree | |
| Module |
Pixel Pitch |
1.8604 mm |
|
Pixel Density |
288926 Dots/㎡ | |
| Resolution | 172x86=14792 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/43 scan constant current drive | |
| Input voltage | 4.2-5 V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 450 g | |
| Power of unit module | <23.5 W | |
| Size (Long, Wide, and Thick) | 320*160*14.5（mm) | |
| Maximum current | <4.7 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
<6 pieces P1.8604 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
≥3840Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode |
Buffer 74HC245, transistor 7559, PWM constant current FM6363/LS9929 |
|
