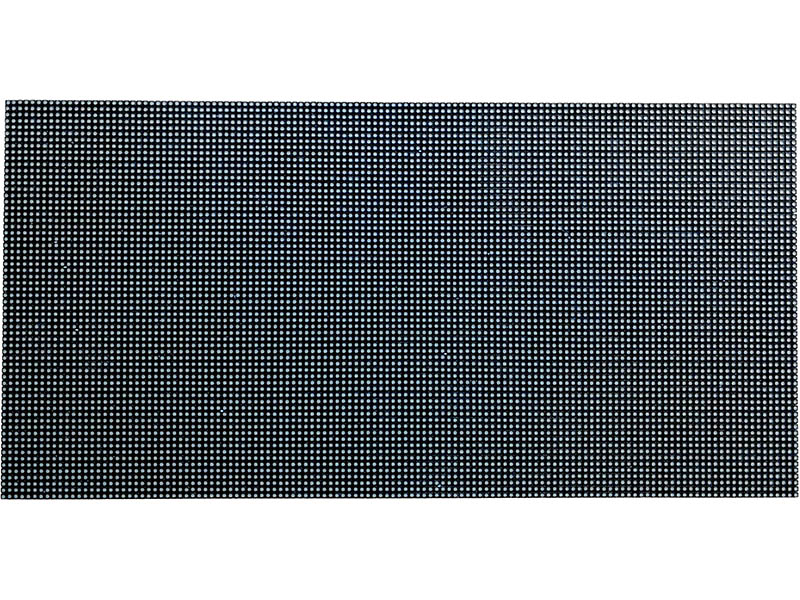

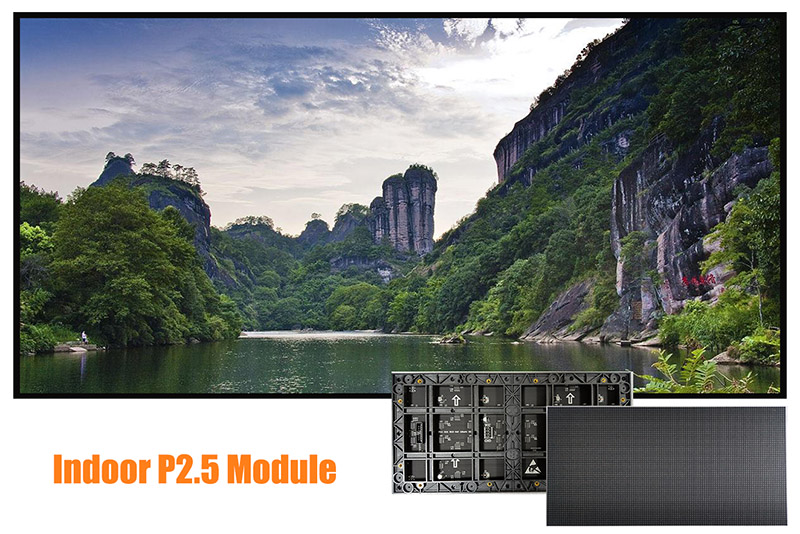

The SMD Indoor P2.5 Full Color LED Module is designed to deliver reliable, high-quality visual performance for a variety of professional and commercial indoor applications. With a pixel pitch of 2.5 mm, it balances image clarity and cost-effectiveness, making it an ideal solution for projects that require impactful displays at medium to extended viewing distances.
ماركة :
Hoozoeنموذج :
SMD Indoor P2.5 LED Full Color Moduleالطلب (الحد الأدنى لكمية الطلب) :
50قسط :
TTأصل المنتج :
Zhangzhouلون :
Full colorميناء الشحن :
Xiamen/Shenzhenمهلة :
10 daysوزن :
374gFeatures
Pixel Pitch:
Featuring a 2.5 mm pixel pitch, this module offers an excellent balance of image clarity and cost-efficiency, making it a versatile choice for diverse professional and commercial indoor applications.
High Resolution & Detail:
Its well-structured pixel arrangement delivers clear and vibrant visuals, capably supporting high-definition video playback, graphical content, and detailed informational displays.
Optimal Viewing Distance:
Designed for mid- to long-range viewing, it provides a seamless and comfortable viewing experience without noticeable pixelation, perfect for audiences positioned several meters away.
Reliable Technology:
Built with robust Surface-Mount Device (SMD) packaging, the module ensures consistent color reproduction, excellent screen uniformity, and dependable long-term performance.

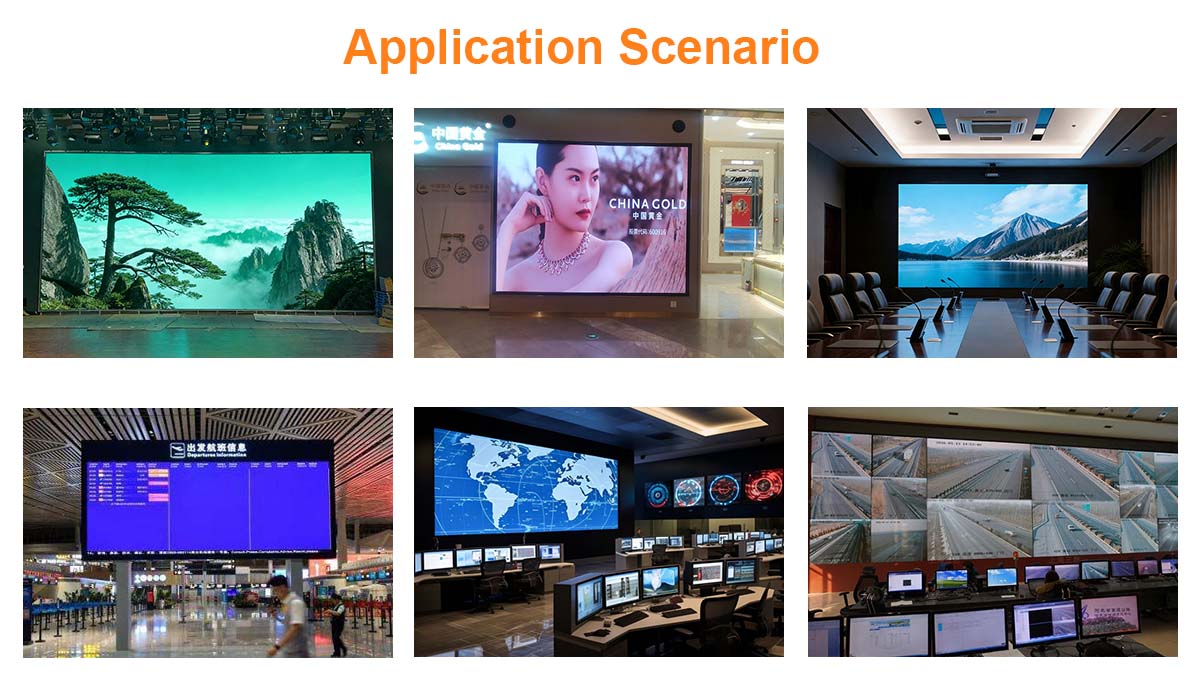

Typical Applications:
Well-suited for a variety of environments including corporate conference rooms, school auditoriums, retail stores, hotel lobbies, control centers, and indoor digital signage projects.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 500 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥2.5m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | > 600 cd/㎡ | |
| Average power consumption of the screen | 200-250 W/㎡ | |
| Horizontal viewing angle of screen | 120±10 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
2.5mm |
|
Pixel Density |
160000 Dots/㎡ | |
| Resolution | 128x84=8192 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/32 scan constant current drive | |
| Input voltage | 4.5-5 V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 374 g | |
| Power of unit module | <25 W | |
| Size (Long, Wide, and Thick) | 320*160*14（mm) | |
| Maximum current | <4.5 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
<8 pieces P2.5 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
Carrying 128 points at 2400Hz or Carrying 128 points at 1920Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | Buffer 74HC245, decoding line tube 7258, dual latch constant current chip | |
